Time Slot Picker (for flows)

There are two time slot picker components available in flows. This article describes their use cases and configuration options.

Single dimension time slot picker

The single dimension time slot picker allows the user to select a time slot when at least one dimension record (out of multiple) is available.

Use this component if users need to pick a time when:

A single specific dimension is available (i.e. when is this room available)
Any one dimension out of a collection of dimensions is available (i.e. rooms in a building, and it does not matter which room)

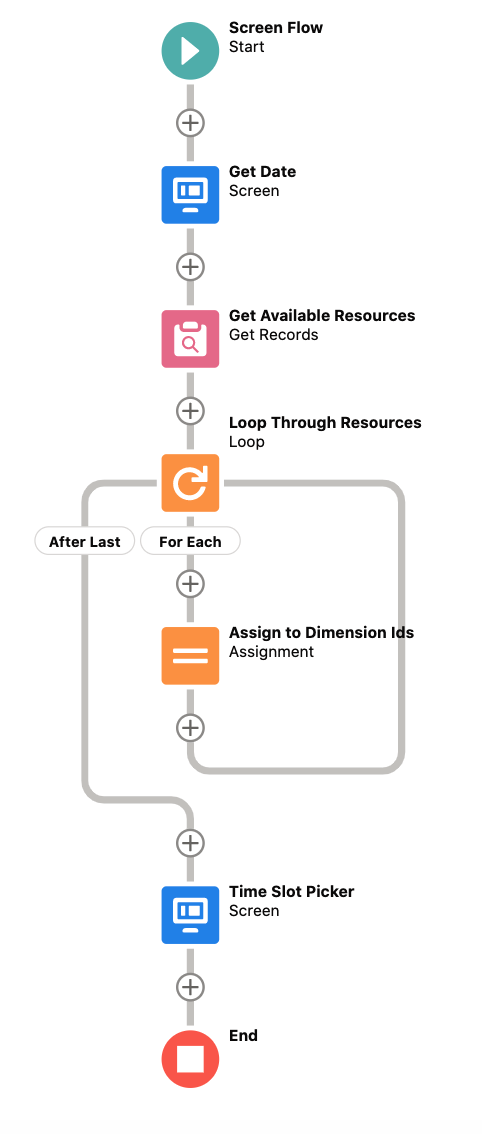

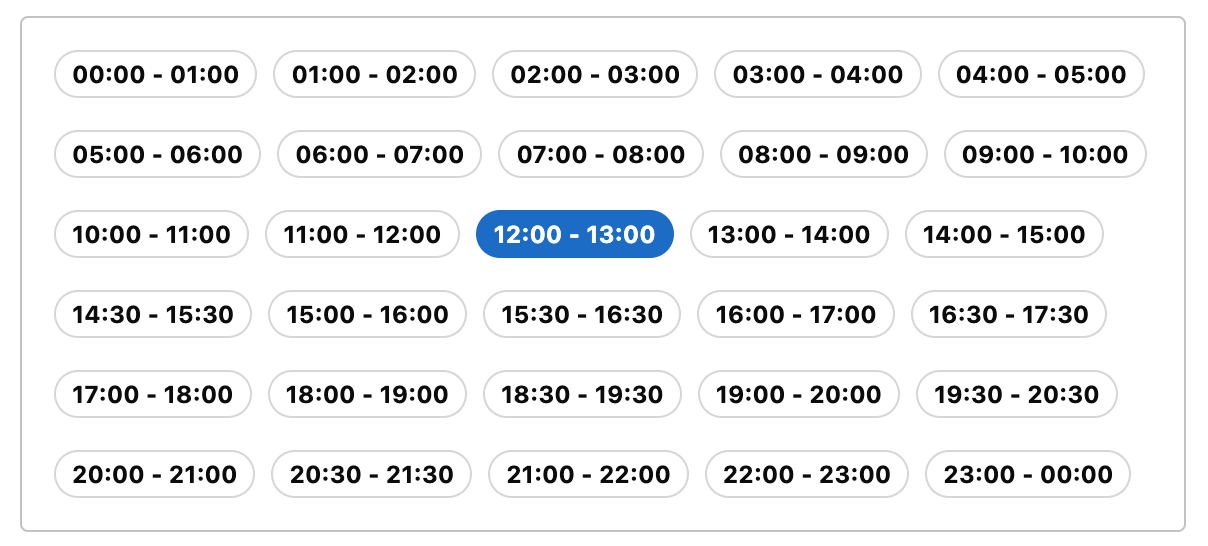

A sample flow using this component could look like this, with the result shown in the video on the right:

Configuration Options

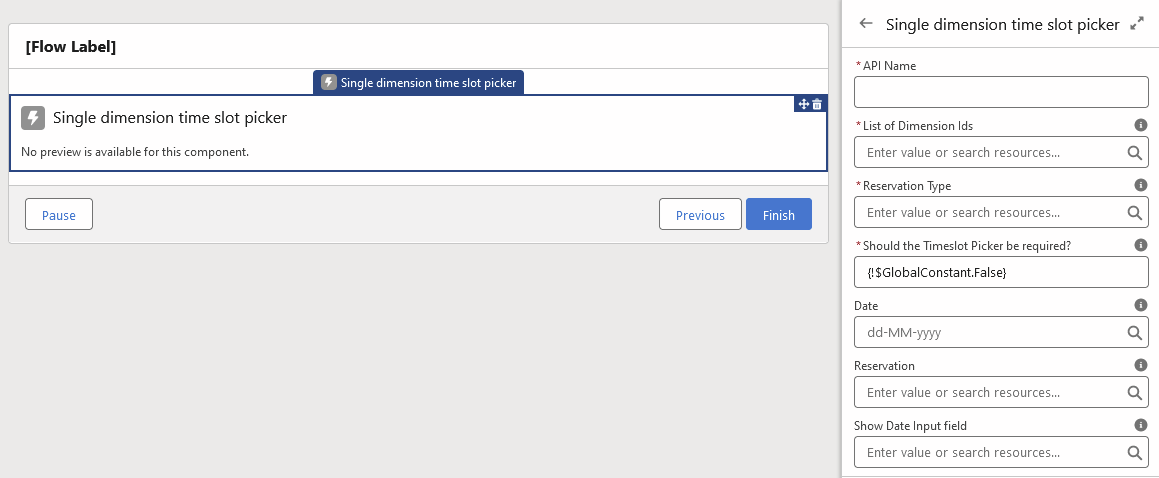

The single dimension time slot picker has the following configuration options for admins:

Field	Input/output	Required/optional	Description
List of Dimension Ids	Input	Required	A list of dimension-ids need to be provided. This can, for example, be a list of all the resources you want to allow the Time Slot Picker to search through.
Reservation Type	Input	Required	The Name of the Reservation Type. You can set the duration of a Timeslot on this reservation type. The fallback is set to 60 minutes.
Should the Timeslot Picker be required?	Input	Required	Expects {!GlobalConstant.True} or {!GlobalConstant.False}. Determines if the value needs to be filled before navigating to the next step.
Date	Input	Optional	A date needs to be parsed to allow the Time Slot Picker to fetch the available time slots for that day.
Reservation	Input	Optional	You can optionally set a sample reservation if there are any other dependencies that should be taken into account when creating the timeslot
Show Date Input field	Input	Optional	Expects {!GlobalConstant.True} or {!GlobalConstant.False}. If true, a date picker is shown at the top which can be used to navigate between days.
Reservation	Output	N/A	Make sure to manually assign the output Reservation (under advanced) to a “Record (single) Variable” of the type B25__Reservation__c. You can use this reservation to either extend in your flow or save it directly after using this component.

Reservation time slot picker

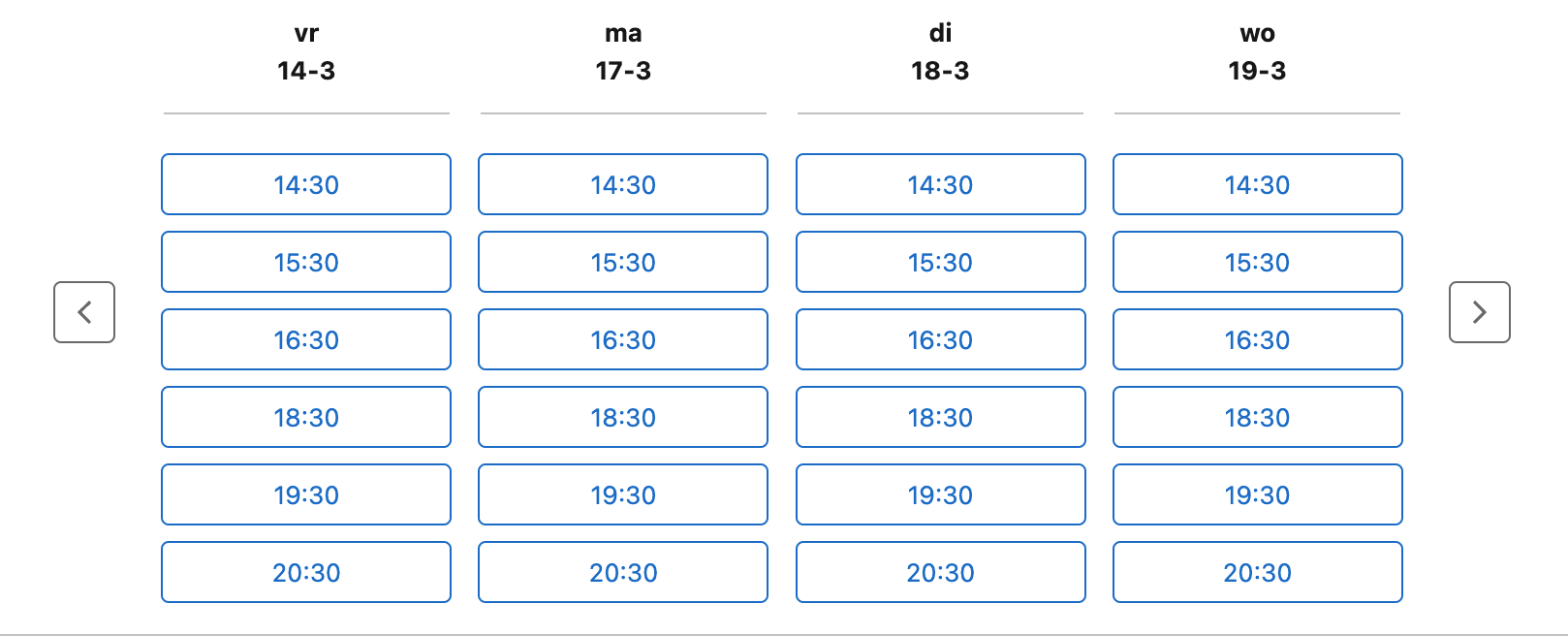

The reservation time slot picker allows the user to select a time slot when a given reservation is possible.

Use this component if you already know what is being booked, but the user still needs to select a time.

So for example you already know which dimensions need to be available (room/staff/etc), and want the user to choose a time slot when all of those are available.

This component can only be used together with the new Conflict Rules.

Configuration Options

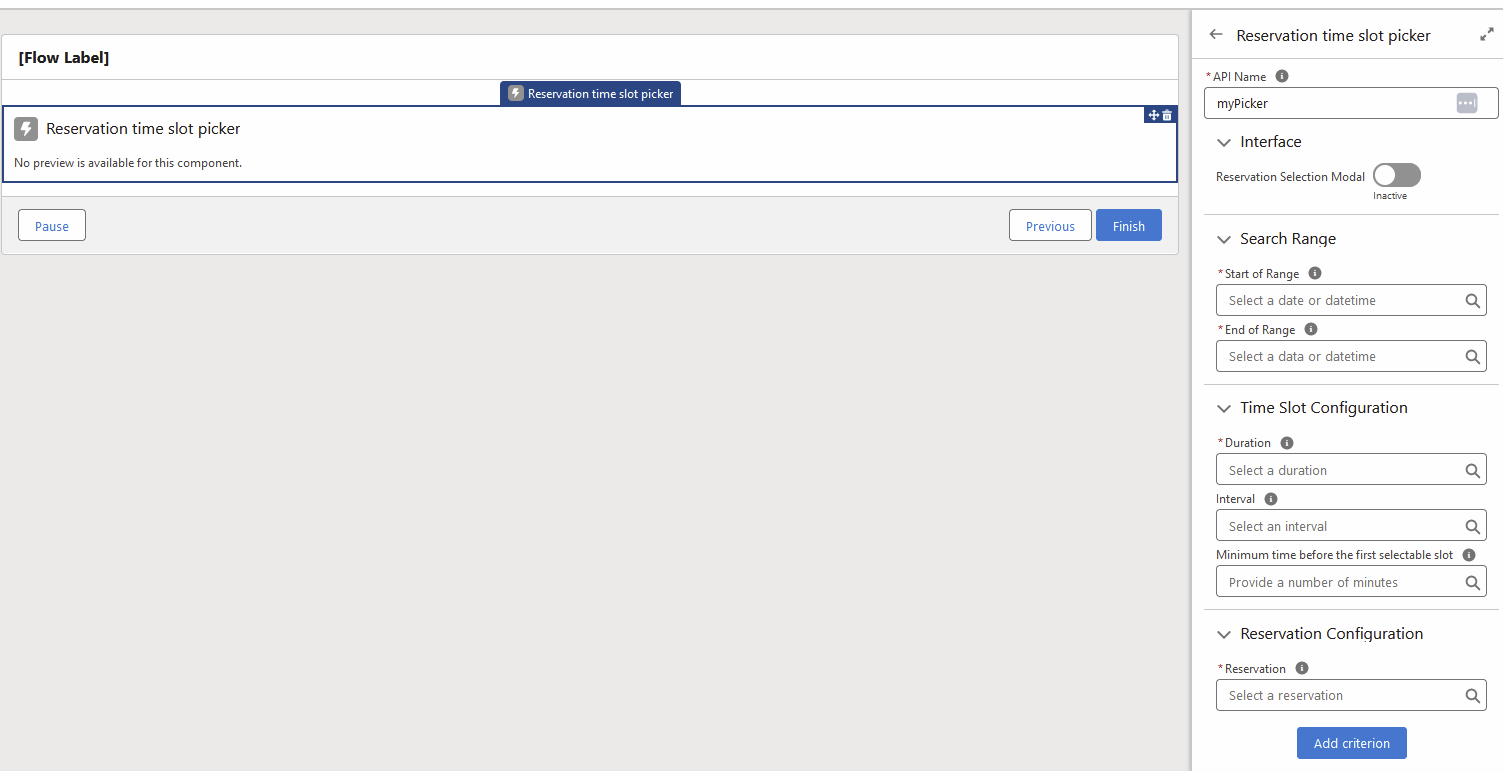

The reservation time slot picker has the following configuration options for admins:

Field	Input/output	Required/optional	Description
Reservation Selection Modal	Input	Required	Show a modal to the user for selecting a reservation. Only applies when there are multiple possibilities, for example when there are more Staff available than required.
Show Slot End Times	Input	Required	When enabled, each slot will not only display the start time of that slot but also the end time.
Start of Range	Input	Required	Start date or datetime of the range to search for available time slots.
End of Range	Input	Required	End date or datetime of the range to search for available time slots.
Duration	Input	Required	Duration (in minutes) of each time slot in the result.
Interval	Input	Optional	Interval (in minutes) between the start of each slot. Defaults to the duration, resulting in back-to-back slots.
Minimum time before the first selectable slot	Input	Optional	The minimum number of minutes until a slot would start to make it selectable. When empty, slots in the past are selectable (provided the start of range is in the past). When 0, only slots starting now or in the future are selectable. When 60 (for example), only slots starting 60 minutes from now are selectable.
Reservation	Input	Required	The reservation to find available time slots for. Make sure to populate it with all dimensions that need to be available, as well as any other data that is relevant to finding available slots.
Junctions	Input	Optional	A list of junctions that need to be available during the resulting time slots. You can add multiple lists of junctions by repeatedly clicking the ‘Add Junctions’ button.
Reservation	Output	N/A	A copy of the input reservation, with the selected times set. If you have any junctions, you still need to 1. insert the reservation, 2. set the reservation lookup on each junction, and 3. insert the junctions. Make sure to manually assign the output Reservation (under advanced) to a “Record (single) Variable” of the type B25__Reservation__c.

Example

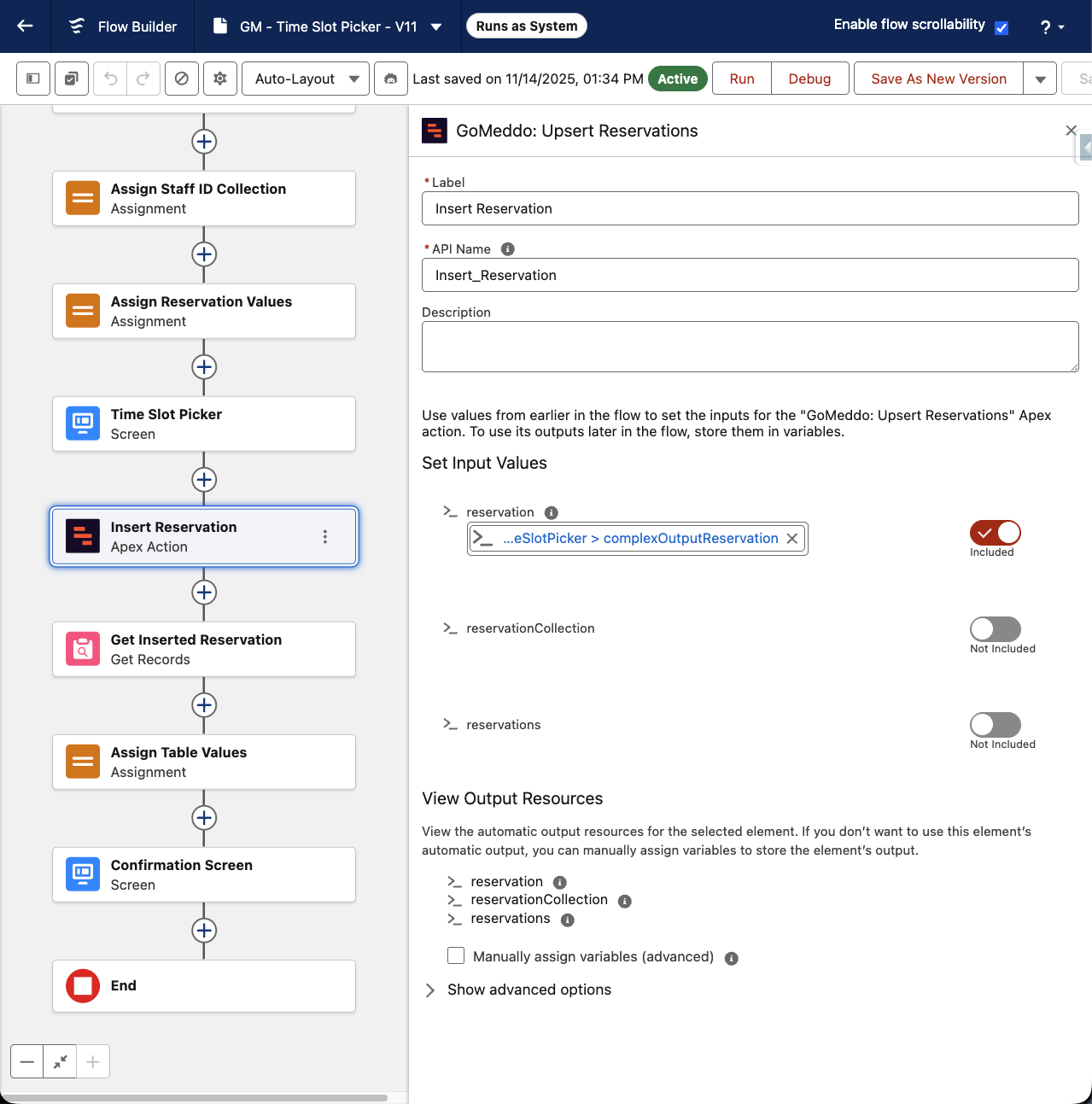

Here is an example of a screen flow with this component

https://youtu.be/0oF86w1TfLw
