Wrapping Calendar Components

GoMeddo comes with a number of calendar components that can be included in your Lightning solutions. One way to include them is through the Lightning App Builder, through drag & drop. Doing so is fast and easy, but only lets you control certain attributes of the component. If you want more control over the calendars, you can consider wrapping them in your own custom components. This article explains how.

B25:multiCalendarWrapper

Code Sample (example)

Below is a basic Aura Component that can be included on a Lightning Record page. This component shows a Week view (view="weekView"), starting at a specific date (startDate="2020-12-31"), and sets the Staff lookup to a the staff record this component is placed on (prototypeReservation="{!v.myPrototypeReservation}, which calls the Controller below it)

This is just an example. When copying this sample, keep a few things in mind:

If you want to display a different calendar, make sure to pass an existing calendar name to calendarId
Make sure that the referenced calendar is of record type Multi Resource Calendar
Make sure that the string passed to view is the unique identifier of a view that is linked to the selected calendar
Make sure to change the lookup to the one you are using

Component

CODE

<aura:component implements="flexipage:availableForRecordHome,force:hasRecordId">
    <aura:handler name="init" value="{!this}" action="{!c.doInit}"/>
    <aura:attribute name="recordId" type="String" />
    <aura:attribute
        name="myPrototypeReservation"
        type="B25__Reservation__c"
    />
    <B25:multiCalendarWrapper
        calendarId="Resources"
        view="weekView"
        startDate="2020-12-31"
        prototypeReservation="{!v.myPrototypeReservation}"
    >
    </B25:multiCalendarWrapper>
</aura:component>

Controller

CODE

({
	doInit : function(component, event, helper) {
        component.set("v.myPrototypeReservation", {
            sobjectType: 'B25__Reservation__c',
            B25__Staff__c: component.get('v.recordId')
        });
	}
})

Properties

The following properties can be used:

Property	Expected Value	Description
calendarId*	The Name of a Calendar record.	This sets the configuration based on the linked Calendar record.
view	The Unique Identifier of a View record.	This sets the currently displayed view. Make sure to choose a View record that is linked to the Calendar record, otherwise this property will be ignored.
startDate	A date string in almost any kind of format.	This sets the start date of the currently displayed view.
prototypeReservation	An object that represents a Reservation record.	Allows you to prepopulate fields on new reservations being created on the calendar, even if that field is not displayed on the reservation form. Note: you can include junctions (such as ReservationContacts) or service reservations in the prototype.
dynamicFilters	An object containing dynamic filter options.	Sets initial values for the dynamic filters available in the multi resource calendar. See Wrapping Calendar Components \| Passing-Dynamic-Filters below.
maxHeight	An integer.	The maximum height that the calendar will stretch to in pixels or percent of window height. If the content is larger, a scroll bar will be shown.
maxHeightUnit	A string with value “px” or “vh”.	The unit used for the maximum height of the calendar. Either pixels (px) or percentage of window height (vh).
hiddenDimensionFilters	A list of filter objects.	Sets filters on the dimension records shown in the calendar. These filters are not visible to users. See Wrapping Calendar Components \| Passing-Hidden-Filters below.
hiddenReservationFilters	A list of filter objects.	Sets filters on the reservation records shown in the calendar. These filters are not visible to users. See Wrapping Calendar Components \| Passing-Hidden-Filters below.
filterIdentifierPrefix	A string.	Any calendars with the same filterIdentifierPrefix will share saved filters. By default the name of the calendar record is used. This allows you to share filters between calendars or have separate filters for the same calendar.
unfilteredDimensionIds	A list of record ids.	Allows you to limit the dimension records that are displayed on the calendar. Any additional filters will never allow records outside of this list to be displayed.
isReadOnly	Boolean	When this property is set to `true`, the calendar does not allow the users to create or modify reservations. It will only display the reservations that are in the system.
availabilityFilteringEnabled	Boolean	When enabled all dimension records that are fully unavailable in the current view will be hidden.
mdaContext	MDAContext	Context for filtering MDavailabilities.

\* This property is required.

B25:singleCalendarWrapper

By using the dimensionIds property, the single calendar can actually display reservations for multiple records, like the multi calendar. Unlike the multi calendar however, it will not add a row for each dimension record.

Property	Expected Value	Description
calendarId*	The Name of a Calendar record.	This sets the configuration based on the linked Calendar record.
recordId*	The id of a dimension record.	This sets the dimension record for this calendar.
dimensionIds	A list of dimension record ids.	Instead of using the recordId property, utilize this property to display reservations for multiple records in the calendar. It requires a Javascript Array containing the record-ids to be assigned.
view	The Unique Identifier of a View record.	This sets the currently displayed view. Make sure to choose a View record that is linked to the Calendar record, otherwise this property will be ignored.
startDate	A date string in almost any kind of format.	This sets the start date of the currently displayed view.
prototypeReservation	An object that represents a Reservation record.	This can be used to prepopulate fields on new reservations being created on the calendar, even if that field is not displayed on the reservation form. Note: you can include junctions (such as ReservationContacts) or service reservations in the prototype.
maxHeight	An integer.	The height of the calendar in pixels or percent of window height. The single calendar does not automatically resize based on the height of the content of the calendar like the multi calendar does.
maxHeightUnit	A string with value “px” or “vh”.	The unit used for the maximum height of the calendar. Either pixels (px) or percentage of window height (vh).
hiddenReservationFilters	A list of filter objects.	Sets filters on the reservation records shown in the calendar. These filters are not visible to users. See Wrapping Calendar Components \| Passing-Hidden-Filters
filterIdentifierPrefix	A string.	Any calendars with the same filterIdentifierPrefix will share saved filters. By default the name of the calendar record is used. This allows you to share filters between calendars or have separate filters for the same calendar.
isReadOnly	Boolean	When this property is set to `true`, the calendar does not allow the users to create, modify or delete reservations. It will only display the reservations and allow the user to navigate the calendars.

\* This property is required.

Code Sample

Below is a basic aura component that can be included on a Lightning page. This component shows a week view starting at a specific date, and sets the Staff lookup to a specific record.

When copying this sample, keep a few things in mind:

If you want to display a different calendar, make sure to pass an existing calendar name to calendarId
Make sure that the referenced calendar is of record type Single Resource Calendar
Make sure that the string passed to view is the unique identifier of a view that is linked to the selected calendar
If you want to prepopulate the Staff lookup like the code sample does, make sure to replace the Staff record id (a0h1j000001H4SkAAK) with an id of an actual Staff record that exists in your org.

CODE

<aura:component implements="flexipage:availableForAllPageTypes" access="global">
    <aura:attribute
        name="myPrototypeReservation"
        type="B25__Reservation__c"
        default="{'sobjectType':'B25__Reservation__c', 'B25__Staff__c':'a0h1j000001H4SkAAK'}"
    />
    <B25:singleCalendarWrapper
        calendarId="SingleResourceCalendar"
        recordId="a0h1j000001H3SkAAK"
        view="singleResourceWeekView"
        startDate="2020-12-31"
        prototypeReservation="{!v.myPrototypeReservation}"
    >
    </B25:singleCalendarWrapper>
</aura:component>

B25:contextAwareMultiCalendarWrapper

The contextAwareMultiCalendarWrapper allows you to display a calendar on a recordpage. You can then instruct the calendar to either:

Load a record in a lookupfield as a dimension by providing recordLookupToDimension
Load a related list of the record as dimension sObject by providing dimensionRecordLookupInfo

This components saves you, in some cases, to create your own logic around the B25:multiCalendarWrapper to fetch the right data to show.

Property	Expected Value	Description
calendarId*	The Name of a Calendar record.	This sets the configuration based on the linked Calendar record.
recordId*	The id of a dimension record.	This sets the record of the page that the calendar thinks it is displayed on.
objectApiName*	The sObject API name for the recordId	This sets the sObjectType of the page that the calendar thinks it is displayed on
recordLookupToDimension**	String	The api name of the field on the record specified by recordId that contains the Id of the record that should be used as dimension record.
dimensionRecordLookupInfo**	String	The api name of the related list sObject + the lookup on the related sObject to the primary sObject. For example if you want to display all the resources of a certain Resource type you could provide B25__Resource__c.B25__Resource_Type__c
view	The Unique Identifier of a View record.	This sets the currently displayed view. Make sure to choose a View record that is linked to the Calendar record, otherwise this property will be ignored.
startDate	A date string in almost any kind of format.	This sets the start date of the currently displayed view.
prototypeReservation	An object that represents a Reservation record.	This can be used to prepopulate fields on new reservations being created on the calendar, even if that field is not displayed on the reservation form. Note: you can include junctions (such as ReservationContacts) or service reservations in the prototype.
maxHeight	An integer.	The maximum pixel height that the calendar will stretch to. If the content is larger, a scroll bar will be shown.
maxHeightUnit	A string with value “px” or “vh”.	The unit used for the maximum height of the calendar. Either pixels (px) or percentage of window height (vh).
hiddenReservationFilters	A list of filter objects.	Sets filters on the reservation records shown in the calendar. These filters are not visible to users. See Wrapping Calendar Components \| Passing-Hidden-Filters below.
hiddenDimensionFilters	A list of filter objects.	Sets filters on the dimension records shown in the calendar. These filters are not visible to users. See Wrapping Calendar Components \| Passing-Hidden-Filters below.
filterIdentifierPrefix	A string.	Any calendars with the same filterIdentifierPrefix will share saved filters. By default the name of the calendar record is used. This allows you to share filters between calendars or have separate filters for the same calendar.
mdaFilteringEnabled	Boolean	Will hide any sObjects that are not available because of availabilities. If you use multi dimensional availabilities it will use the record passed through recordId as the context for the multi dimensional availabilities.
isReadOnly	Boolean	When this property is set to `true`, the calendar does not allow the users to create, modify or delete reservations. It will only display the reservations and allow the user to navigate the calendars.

\* This property is required.
\** One of these two properties must be set.

Code Samples

Below is a basic aura component that can be included on a Reservation record page. This component shows a calendar with the resource linked to the reservation and sets the Staff lookup to a specific record when creating new reservations.

When copying this sample, keep a few things in mind:

If you want to display a different calendar, make sure to pass an existing calendar name to calendarId
If you want to pre-populate the Staff lookup like the code sample does, make sure to replace the Staff record id (a0h1j000001H4SkAAK) with an id of an actual Staff record that exists in your org.

NONE

<aura:component implements="flexipage:availableForRecordHome,force:hasRecordId" access="global">
    <aura:attribute
        name="myPrototypeReservation"
        type="B25__Reservation__c"
        default="{'sobjectType':'B25__Reservation__c', 'B25__Staff__c':'a0h1j000001H4SkAAK'}"
    />
    <aura:attribute name="recordId" type="Id"/>
    <B25:contextAwareMultiCalendarWrapper
        calendarId="ResourceCalendar"
        recordId="{!v.recordId}"
        objectApiName="B25__Reservation__c"
        recordLookupToDimension="B25__Resource__c"
        prototypeReservation="{!v.myPrototypeReservation}"
    >
    </B25:contextAwareMultiCalendarWrapper>
</aura:component>

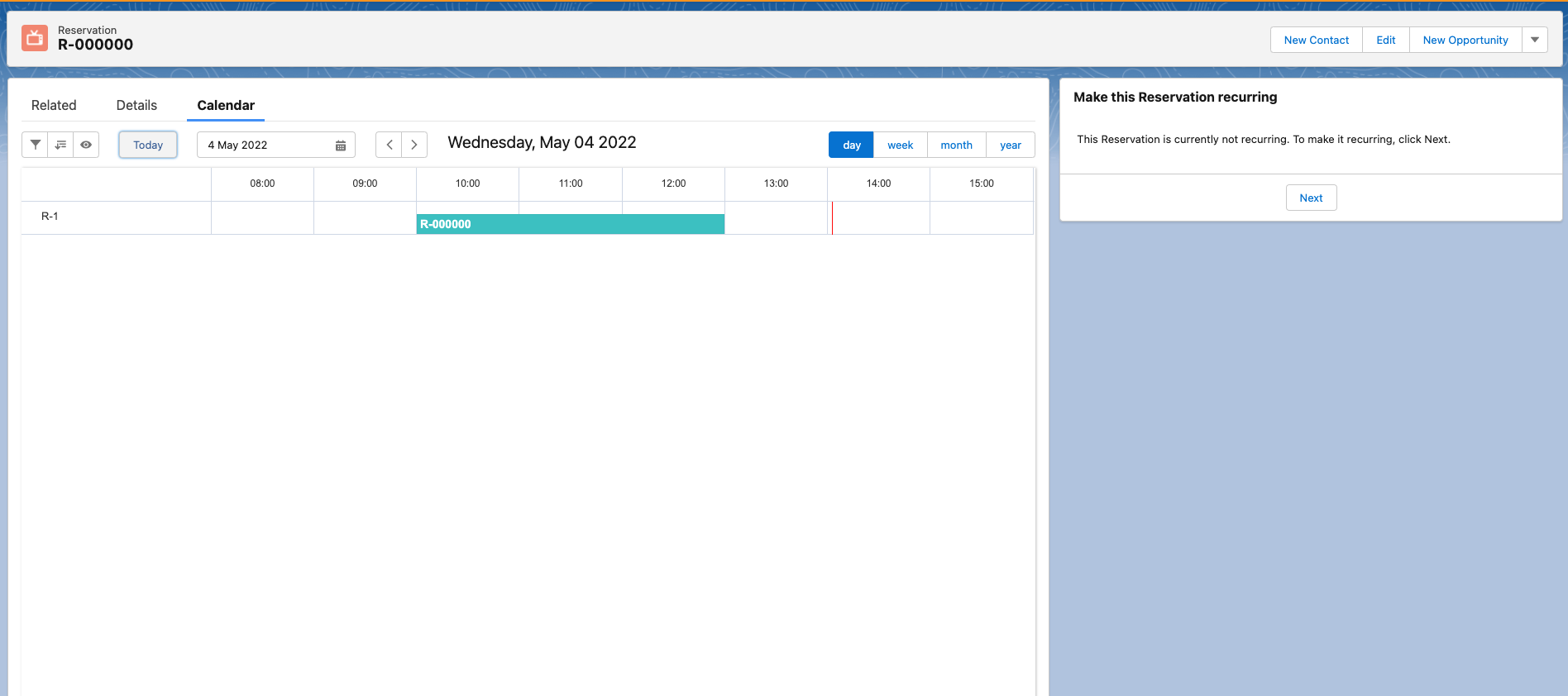

Example of the contextAwareMultiCalendarWrapper on a Reservation record page

Below is a basic aura component that can be included on a Resource Type record page. This component shows a calendar with all the resources of that type and their children and sets the Staff lookup to a specific record when creating new reservations.

When copying this sample, keep a few things in mind:

If you want to display a different calendar, make sure to pass an existing calendar name to calendarId
If you want to pre-populate the Staff lookup like the code sample does, make sure to replace the Staff record id (a0h1j000001H4SkAAK) with an id of an actual Staff record that exists in your org.

NONE

<aura:component implements="flexipage:availableForRecordHome,force:hasRecordId" access="global">
    <aura:attribute
        name="myPrototypeReservation"
        type="B25__Reservation__c"
        default="{'sobjectType':'B25__Reservation__c', 'B25__Staff__c':'a0h1j000001H4SkAAK'}"
    />
    <aura:attribute name="recordId" type="Id"/>
    <B25:contextAwareMultiCalendarWrapper
        calendarId="ResourceCalendar"
        recordId="{!v.recordId}"
        objectApiName="B25__Resource_Type__c"
        dimensionRecordLookupInfo="B25__Resource__c.B25__Resource_Type__c"
        prototypeReservation="{!v.myPrototypeReservation}"
    >
    </B25:contextAwareMultiCalendarWrapper>
</aura:component>

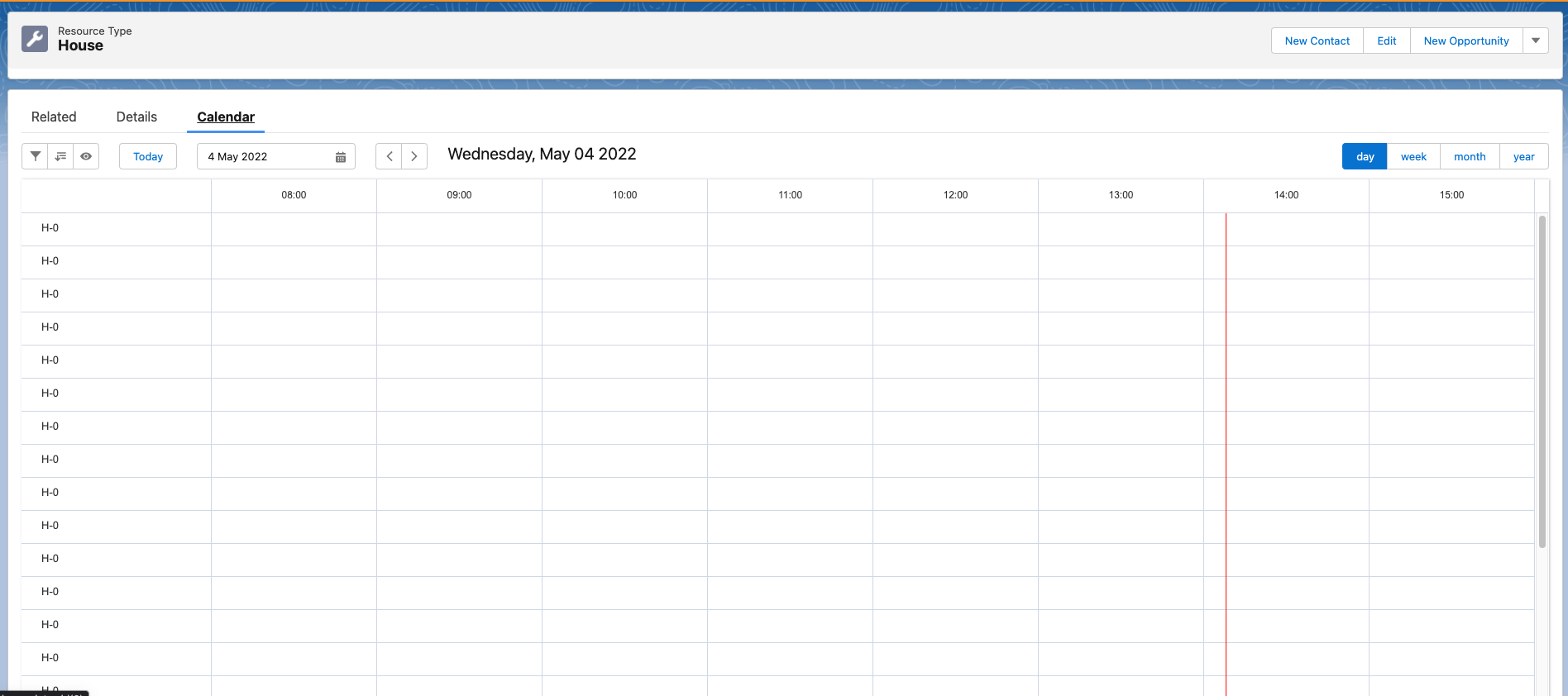

Example of the contextAwareMultiCalendarWrapper on a Resource Type record page

B25:mobileCalendarWrapper

Property	Expected Value	Description
calendarName*	The Name of a Calendar record.	This sets the configuration based on the linked Calendar record. (Views are overridden with the mobile calendar view)
recordId	The id of a dimension record.	This sets the dimension record for this calendar. If not specified a record selector is displayed at the top allowing the user to select a record.
startDate	A date string in almost any kind of format.	This sets the start date of the currently displayed view.
prototypeReservation	An object that represents a Reservation record.	This can be used to prepopulate fields on new reservations being created on the calendar, even if that field is not displayed on the reservation form. Note: you can include junctions (such as ReservationContacts) or service reservations in the prototype.
hiddenReservationFilters	A list of filter objects.	Sets filters on the reservation records shown in the calendar. These filters are not visible to users. See Wrapping Calendar Components \| Passing-Hidden-Filters below.
isReadOnly	Boolean	When this property is set to `true`, the calendar does not allow the users to create, modify or delete reservations. It will only display the reservations and allow the user to navigate the calendars.

\* This property is required.

Code Sample

Below is a basic aura component that can be included on a Lightning page. Sets the Title lookup to a specific value.

When copying this sample, keep a few things in mind:

If you want to display a different calendar, make sure to pass an existing calendar name to calendarName
Make sure that the referenced calendar is of record type Single Resource Calendar

CODE

<aura:component implements="flexipage:availableForAllPageTypes" access="global">
    <aura:attribute
        name="myPrototypeReservation"
        type="B25__Reservation__c"
        default="{'sobjectType':'B25__Reservation__c', 'B25__Title__c':'Test Title'}"
    />
    <B25:mobileCalendarWrapper
        calendarName="SingleResourceCalendar"
        startDate="2020-12-31"
        prototypeReservation="{!v.myPrototypeReservation}"
    >
    </B25:mobileCalendarWrapper>
</aura:component>

Passing Hidden Filters

You can pass a list of filter objects to the properties hiddenReservationFilters (available on both single and multi calendars) and hiddenDimensionFilters (available only on multi calendars). These properties control which records are visible on the calendar. Because they are hidden, the user can’t change them and they will always apply.

Each item in the list is expected to have the following properties:

Property	Description
fieldName	The API name of the field being filtered.
operator	The operator being applied. Valid values are: '=', '!=', '>', '<', '<=', '>='.
value	The value being compared against.
displayedValue	(Optional) The value being displayed to the user. This is useful for lookups, where the passed value is a record id, but you might want to display the record name to the user instead.

CODE

<aura:component implements="flexipage:availableForAllPageTypes" access="global">
    <aura:attribute
        name="myFilters"
        type="Object[]"
        default="[{'fieldName':'Name', 'operator':'=', 'value':'Nice'}]"
    />
    <B25:multiCalendarWrapper
        calendarId="Resources"
        view="week"
        startDate="2020-12-31"
        hiddenDimensionFilters="{!v.myFilters}"
    >
    </B25:multiCalendarWrapper>
</aura:component>

Filter Groupings

Filters can be grouped by using a logicalOperator, allowing you to do AND and OR statements in the grouping. For example:

JSON

{
  type: 1,
  logicalOperator: 'OR',
  subFilters: [
    { 'fieldName': 'Name', 'operator': '=', 'value': 'Awesome'},
    { 'fieldName': 'Name', 'operator': '=', 'value': 'Nice'}
  ]
}

The groupings can be nested inside the subFilters property, allowing for more complex logic. This example shows A OR (B AND C):

CODE

{
    type: 1,
    logicalOperator: 'OR',
    subFilters: [
        { 'fieldName': 'Name', 'operator': '=', 'value': 'A'},
        {
            type: 1,
            logicalOperator: 'AND',
            subFilters: [
                { 'fieldName': 'Name', 'operator': '=', 'value': 'B'},
                { 'fieldName': 'Name', 'operator': '=', 'value': 'C'}
            ]
        }
    ]
}

The following properties are required

Property	Description
type	Indicates that it is a grouping, all belonging in the same logicalOperator
logicalOperator	Either AND or OR. Indicating if the filters should both be true (AND) or one of them should be true (OR)
subFilters	A list of hiddenFilters as described in the passing hidden filters section above.

The example below is more complex, it shows resources that are marked Active AND that have a name Awesome OR Nice.

CODE

/* calendar.cmp */
<aura:component implements="flexipage:availableForAllPageTypes" access="global">
    <aura:handler name="init" value="{!this}" action="{!c.doInit}" />
    <aura:attribute
        name="myFilters"
        type="Object[]"
    />

    <B25:multiCalendarWrapper
        calendarId="Resources"
        view="week"
        startDate="2020-12-31"
        hiddenDimensionFilters="{!v.myFilters}"
    >
    </B25:multiCalendarWrapper>
</aura:component>

/* calendarController.js */
({
  doInit: function (cmp, event, helper) {
    var recordId = cmp.get('v.recordId');
    cmp.set('v.myFilters', [
        { 'fieldName': 'B25__Is_Active__c', 'operator': '=', 'value': 'true'},
        {
            type: 1,
            logicalOperator: 'OR',
            subFilters: [
                { 'fieldName': 'Name', 'operator': '=', 'value': 'Awesome'},
                { 'fieldName': 'Name', 'operator': '=', 'value': 'Nice'}
            ]
        }
    ]);
  }
})

Multiple Values

For use cases where checking against multiple values is required, the IN and NOT IN keywords can also be used to simplify your filters. For example:

CODE

/* calendarController.js */
({
  doInit: function (cmp, event, helper) {
    var recordId = cmp.get('v.recordId');
    cmp.set('v.myFilters', [
        { 'fieldName': 'B25__Is_Active__c', 'operator': '=', 'value': 'true'},
        {
            type: 1,
            logicalOperator: 'OR',
            subFilters: [
                { 'fieldName': 'Name', 'operator': 'IN', 'values': ['Awesome', 'Nice', 'Terrific']}
            ]
        }
    ]);
  }
})

Passing Dynamic Filters

You can pass a special object to the property dynamicFilters (available only on multi calendars). This property allows you to specify initial values for two different types of dynamic filters: “Available Resource Filter” (allowing you to show only available resources during the specified times), and “Hide rows without reservations” (allowing you to choose whether to show rows that have no visible reservations in the calendar view).

dynamicFilters should contain the following properties:

Property	Description
hideRowsWithoutReservations	A boolean specifying whether to show empty rows in the calendar view.
availableResourceFilter	A nested object containing initial values for the available resource filter.

availableResourceFilter should contain the following properties:

Property	Description
enabled	A boolean specifying whether to show empty rows in the calendar view.
fromDateTime	A datetime string specifying the beginning datetime for the filter.
untilDateTime	A datetime string specifying the ending datetime for the filter.

CODE

/* calendar.cmp */
<aura:component implements="flexipage:availableForAllPageTypes" access="global">
  <aura:handler name="init" value="{!this}" action="{!c.doInit}"/>
  <aura:attribute
    name="dynamicFilters"
    type="Object"
  />
  <B25:multiCalendarWrapper
    calendarId="Resources"
    view="week"
    startDate="2024-04-12"
    dynamicFilters="{!v.dynamicFilters}"
  >
  </B25:multiCalendarWrapper>
</aura:component>

/* calendarController.js */
({
  doInit: function (component, event, helper) {
    component.set("v.dynamicFilters", {
        hideRowsWithoutReservations: true,
        availableResourceFilter: {
            enabled: true,
            fromDateTime: '2024-04-12T12:30:00.000Z',
            untilDateTime: '2024-04-19T12:30:00.000Z'
        }
    });
  }
})

MDAContext

Property	Expected Value	Description
enabled	Boolean	If the MDA filtering is enabled
context	Map<String, List<Id>>	A Map of The availability lookups on the Availability record to a list of ids. Availabilities will only be included if the lookup specified matches any of the provided ids.
subtreeContext	Map<String, List<Id>>	Works in the same way as the normal context however will not be take into account if the availability is an unavailability
